Hot Dip Galvanized Steel Woven Wire Field Fences with Barbed Wire for Hogs, Horses, Cattles, Goats and Deers - Graduated Mesh Steel Fencing for Farming and Agricultural Industry

Field fence is a type of woven wire rolled fencing made from interwoven metal wires with graduated opening typically used to contain livestock or other animals, also named Livestock Fence.

Woven Wire Field Fence has stronger fabrics compared with common welded fence and can be installed quickly with fewer fence posts.

Common Knots Type- Square Deal, Hinge Joint, Fixed Knot, V-Mesh
Square knot woven wire field fence
V-mesh horse fence
Hinge joint fence
Fixed knot fence

Field fence for agricultrual uses:
Cattle Fence

Deer Fence
Wildlife Fence

Compare the four different knots type

Square Knot Woven Wire Fence is an economical fencing option that provides excellent strength and durability for a wide variety of livestock containment and other applications. It is available in several heights, including 2', 3', 4', and 5'.

Hinge Joint Woven Wire Fence is a strong, rigid fence system designed to withstand heavy livestock pressure as well as other animal control needs. The hinge joint construction is made with solid vertical stays that are bound by 8-gauge steel wire ties. This wire fence has several height options, 2', 3', 4', and 5'.

Fixed Knot Mesh Fence is built with superior strength and is widely used for cattle, sheep and goat control. The design of the fixed knot allows for greater stability compared to other woven styles. This fence is available in five heights, with options ranging from 2', 3', 4', and 5' for agricultural fencing uses. The fixed knots structure brings reduced cost and less maintenance compared with other wire fences.

V-Mesh Woven Wire Fence is perfect for heavy livestock such as horses fencing. The unique design of the V-Mesh fence makes secure enclosure easy to install and maintain. V mesh fence is ideal for containing horses, llamas, alpacas, and other large animals.

Each type offers an economical and durable option for livestock containment and other uses.

Materials: High tensile steel wire, electro or hot dipped zinc coated. The galvanized steel wire provides a rustproof coating that makes the fence more durable and able to withstand harsh weather conditions. Field fence is usually made from heavy zinc coated galvanized steel wire for long life, some types are coated with aluminum coated wires or vinyl coated for extra protection. Wire diameters used in steel wire field fence is usually between 10 to 13 gauge. The colors of the plastic coating are usually black, white, green, or brown. Vinyl-coated fencing is the most durable and can last up to 25 years.


High Tensile Woven Wire Field Fence Offers Many Advantages Over Welded Wire Mesh Fence:

Woven Wire Type Field Fence for Farm and Pastures Perimeters is made by hot-dipped galvanized wire, the tensile strength of crimped wire can be 1000 Newton and the weft wire tensile strength can exceed 500 Newton. The metallic woven wire fence offers flexible and secure barrier to protect cattle, deer, horse, cow, sheep and goats as grassland fence and farm fencing. Compared with Welded mesh fencing for livestock fencing with a fixed mesh opening, Woven wire field fence offers following benefits:
1,Higher strength against the violent clashing of horses and other animals to ensure the safety;
2, With weft wire pre-crimped, the fence has further strengthened flexibility;
3,The graduated spacing unique structure enables this woven wire fence works well in farming both small animals and big animals of various sizes.

Field Fence Wire Sizes and Zinc Coating Standards:
14 Gauge, 12.5 gauge, 10.5 gauge, 11gauge wire is popularly used in producing field fence.

High Tensile Field Fence is available in Class 3 (heavy coat) galvanized. ZA + Paint advanced coating available.

All High Tensile Field Fence products meet or exceed ASTM A 116-05 for product standards, as well as, ASTM A 641-03 for zinc coating standards.

Field Fences according to uses:

1. Woven Wire Field Fence: This is a type of steel field fence that is made from interwoven wires. It is strong and versatile, making it ideal for agricultural and ranching areas, as well as for keeping horses, cattles, goats, sheeps, also known as Horse fence, cattle fence, goat fence, etc according to the specific animals for fencing.

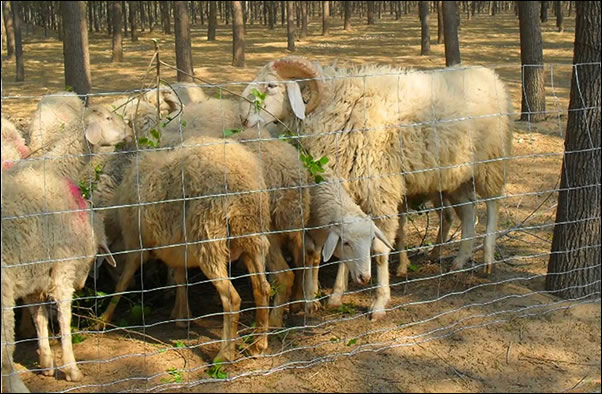

Sheep fencing
2. Barbed Wire Field Fence: This type of field fence utilizes barbed wire along its top edge to provide additional security and protection. It is often used as a perimeter fence or to keep livestock in.
3. Straight Wire Field Fence: This type of field fence consists of straight line wires secured in place with posts and other support structures to create a sturdy barrier. Straigt line fence is commonly used to section off large fields and to keep animals contained.
4. Electric Wire Field Fence: This type of field fence is electrified to provide an additional deterrent against unwanted visitors. It is often used in conjunction with barbed wire to further enhance security.
5. Hog Wire Fence: This type of field fence uses small, closely spaced wires arranged in a tight grid pattern. It is most often used to keep small animals, such as hogs, confined in a certain area.
6. Horse Fence: Designed specifically for containing horses.
7. Deer Fence: This type of field fence is specifically designed to keep deer out of fenced-in areas. It is typically made of thick, interwoven metal wires and is tall enough to deter deer from jumping over.

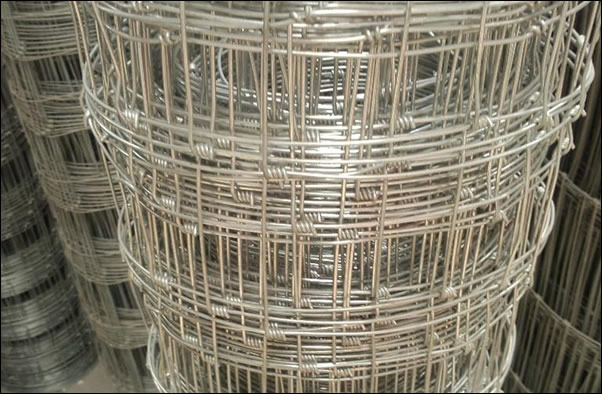

Heavily Galvanised Field Fence
Structure: 13/188/15 ( 13 Horizontal Lines, 1880 mm height and 150 mm ).
Bottom and Top Edge Wires: 3 mm
Line Wires : 2.25 mm
Stay wires : 2.5 mm
Hot dipped Galvanized Finish: zinc coating quantity: 60-100g per square meter, max 230-240g per square coating

Field Fence made with a fixed knot, ringlock, or square deal
Fence height 120cm
Number of horizontal wires: 7
Distance between the horizontal wires: 20cm
Fence top, bottom, middle and vertical wire: 3mm
Tensile strength min 600N/mm²
Finish: Galvanised
Connection wires: fixed knot, ringlock, or square deal

10 Gauge Class 3 Graduated Mesh Field Fence
10 Gauge top and bottom wire with 12.5 gauge filler.
Material: Class 3
Fence height:48"
Mesh structure:Graduated spacing starts with small openings at the bottom and big ones at the top.

Installation

Field Fence is strong, durable, and cost-effective. Types of installation for Woven Wire Field Fence, include buried wire and screw-in post types.

Panel systems consist of individual panels that can be joined together using specialized clips.

To install Field Fence, following factors shall be considered:

1, The livestock for farming, farming layout, and terrain;
2, Fence height: The fence height and spacing of posts are carefully calculated based on the size and type of animals to be enclosed, as well as the land terrain. Larger animals require taller fencing.
3, Post spacing: When calculating the spacing between fence post, it is important to take into account the gauge of the material and the weight load on the fence. The spacing between fence posts also depends on the type of animal and the desired security level.
4, Additional strength and stability: We also supply two-strand fences, corner braces, and line posts, used for additional strength and stability.
5, Proper maintenance is necessary to ensure the longevity of the fence, such as regularly checking for damage or loose posts and conducting necessary repairs. Field Fences can last up to 20 years when properly installed and maintained. However, this can vary depending on the environment and application.
6, The specifications, characteristics, and service life of Field Fence depend on the type of material used, such as galvanized or vinyl coated steel for extra corrosion resistance.
