Galvanized Tubular Steel Fencing

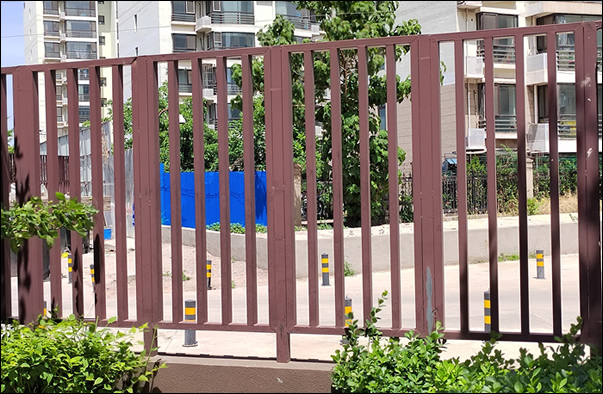

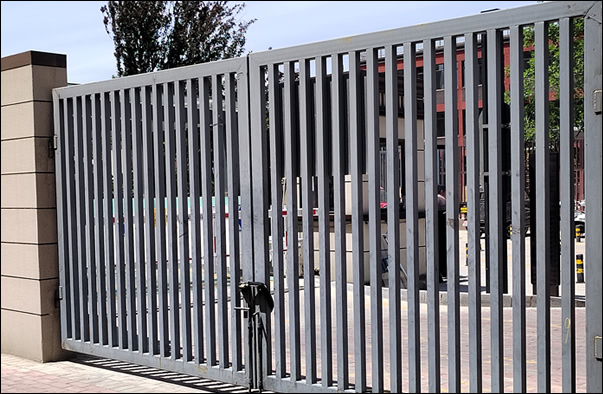

Tubular steel fencing is generally made of carbon steel galvanized or powder coated. Galvanized tubular steel fencing is a great option when it comes to security and protection. It is most commonly used for perimeter fencing and security enclosures, as well as for pool enclosures and industrial applications. Compared to conventional steel fencing, galvanized tubular steel fencing is more durable and reliable, as it does not succumb to rust and corrosion as easily,this type of fencing provides a strong, durable barrier that is suitable for both residential and commercial applications. Additionally, it is relatively easy to install and available in a wide range of sizes, which makes it suitable for many different uses. Galvanized Tubular Steel Fencing is made from large hollow galvanized steel tubes that are formed into panels or posts. The tubing is then cut and bent into the desired shape for your fencing system. It is a great option for those who want a secure and cost-effective alternative to conventional steel fencing.



The specifications for galvanised tubular steel fencing vary depending on the exact application. Generally speaking, the sizes vary between two inches to four inches in diameter and up to twelve feet in length.

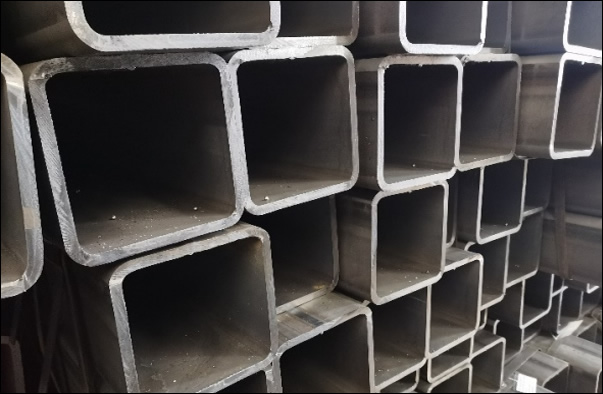

Galvanized square tubes 200X200X12X10165,MM

We offer galvanized tubing steel fencing classified by application, which include:
1. Picket Fencing: This style of fencing is perfect for creating a decorative border around a yard or garden, as it is quite lightweight and easy to install. It is generally made from two inch tubing and is available in a variety of heights and shapes.
2. Post & Rail Fencing: This type of fencing is perfect for enclosing larger areas, such as fields, meadows, paddocks and yards. Generally, posts are installed with rails attached horizontally, although some designs also feature upside down U-shaped posts for extra strength.
3. Security Fencing: These fences are designed to keep out unwanted intruders and are made from thick and sturdy tubes which are welded together. They are usually constructed from four inch galvanized steel tubes, and can be fitted with barbwire or razor wire for added security.
4. Pool Fencing: This type of pipe fencing is designed to provide protection to swimming pools. It is usually made out of two inch tubing and is available in various colors, shapes, and sizes.
5. Driveway Gates: Can be custom designed to fit a variety of different widths and heights.
6. Wrought Iron Fencing: Decorative tube railings.

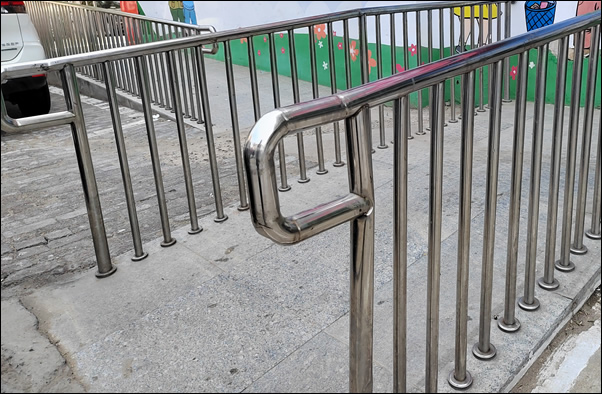

7. Balustrade Fencing: This type of fencing, is often used for stairwells and decks, is constructed from four inch tubes and adds a unique and eye-catching look to any outdoor space.
8. Palisade Rail Fencing: Used as border security fencing in many rural settings.
9. Galvanized and color painted steel tube fencing - For road traffic control, highway safety and barrier.

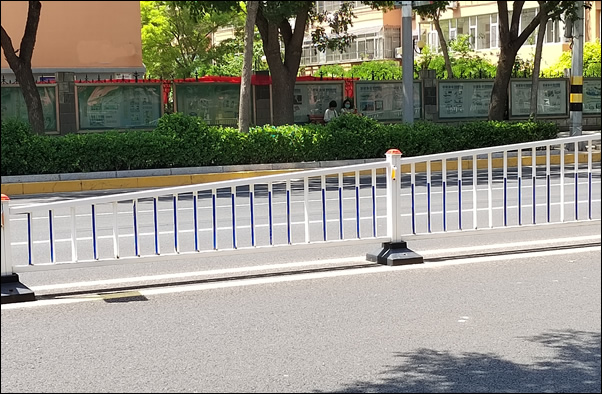

PVC coated galvanised tube fencing for road safety

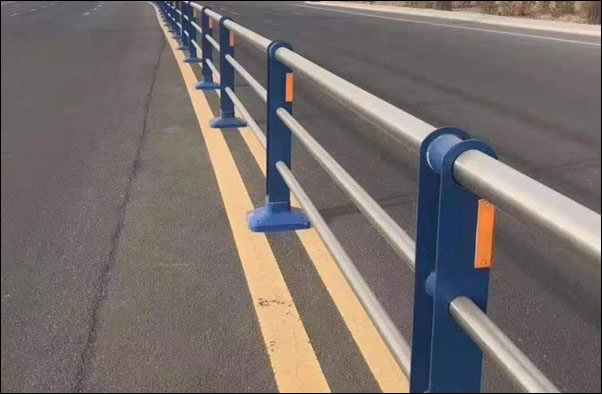

Galvanized steel tube railings for highway traffic guardrail

Surface treatment: Galvanized or powder coated
Technical Info:
Pre-galvanized (hot dipped galvanized), powder coated black
Top & Bottom rails: 38mm x 38mm 16 gauge
Pickets: 15.87mm x 15.87mm 18 gauge spaced 114mm apart on the center
Finished fence sizes: Height xWidth:
1524mm x 2.388M
1575mm x 2.388M
1727mm x 2.388 M
Custom size acceptable.

Installing tubular steel fencing
First, pick the size of fence post, which will affect the height and spacing of the fencing. Next, decide type of fixing. Common options are concrete mix, bolts, screws and nails. Thirdly, calculate the parameters, including distance between the posts, fence height, and material. Then begin the installation: attaching the posts to the ground with the chosen fixing method, connecting the panels to each other and the posts, and finally adding accessories such as a gate or alarm system if necessary.


Tubular Steel Fencing is lightweight, rust-resistant galvanized, and can be powder coated in a variety of colors.

Popular styles


Galvanized Steel Picket Tubular Fence Panels of 8'w x 6'- 10" H and 2 sliding gates, 1 of 25'- 0" W x 6'- 10" H and another one of 16'-0" W x 6'-10" H
Description: 3 rails 2 at the top and 1 at the bottom the tube size shall be of 3/4" x 3/4" x 14 Ga thick. The material shall be all galvanized and painted black, or other colors.
