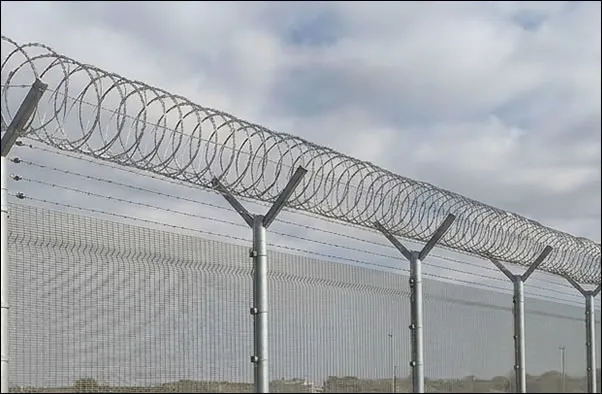

Curved Welded Mesh Panel Fence with 3D Bends - Topped with Concertian Wire Loops

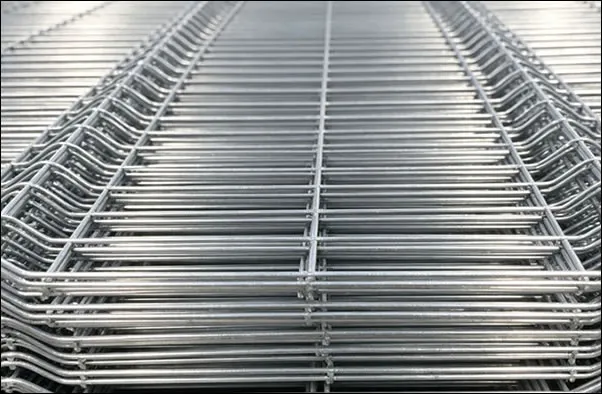

3D Bending Welded Mesh Panel High Security Fence

Fence System Specifications:

Welded Mesh Panel - 3.0mm x 76.2mm x 12.70mm

Steel wire: 11 Gauge -0.120" (3.0mm) with GI - Horizontal
Flat bar: Vertical Reinforcing Flat bars 15mm wide x 5.0mm thick (±2%) placed at 75mm (±2%) intervals
Mesh size: 76.2mm x 12.70mm
Panel size: 2.80Mtr High x 2.91Mtr Wide
With 3D Bending – 3 No’s

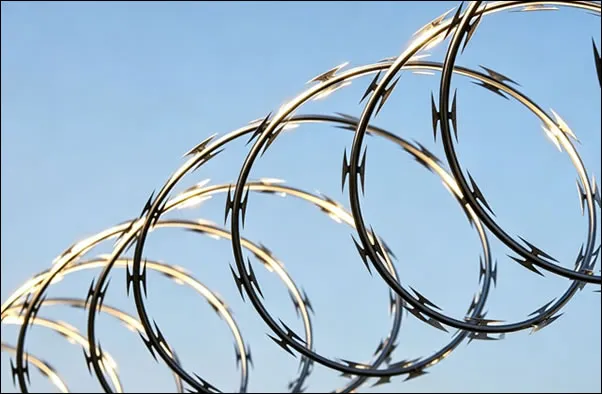

Concertina Razor Wire - CBT-65

Concertina Wire Loops topped 3D curved welded mesh fences
Nr. Of Rows: 3
Material: SS - 316 Blades
Coil diameter: 600 mm (±50mm)
Galvanized Core Wire Dia 2.50mm(± 0.2mm)
Loops 24 (±1) as per ASTM F1910

Barbed wire
Nr. Of Rows. 6
Wire diameter: 12.5 - 0.098" (2.50mm) Gauge GI Wire
according to ASTM A121 or ASTM A641,Class 111, With 14 gauge, 4

Line Post/ Corner Post/ End Post/ Pull Post
Pipe Dia 88.90mm, SCH. 80 in accordance with ASTM A53.
Wall thickness: SCH. 80 Wall Thickness (7.62mm Thickness)
Post Length - 2.70Mtr above ground + 1.0mtr Below + 0.45 Mtr Y crank
Post Interval - 3.0 meter

Line post: 3700mm post length x 88.90mm outside diameter x 7.62mm wall thickness x 15.27 kg/m
Corner and end post: 3700mm post length x 88.90mm outside diameter x 7.62mm wall thickness x 15.27 kg/m

Strut
Brace strut: 3000mm post length x 60.30mm post diameter x 3.91 mm wall thickness x 5.44 kg/m
Pipe Dia 60.30mm, SCH. 40 in accordance with ASTM A53 at every 3m
Wall thickness: SCH. 40 Wall Thickness (3.91mm Thickness)
Post Length: 3.0 meter

Hot dip galvanizing: All steel materials Hot Dip Zinc Galvanized per ASTM A123
