Expanded metal type fence with diamond shaped holes is a heavy duty steel mesh fencing featuring small hole and anti climbing property. Galvanized steel expanded mesh panels are widely used as express /highway fencing and infrastructure perimeter fencings. Expanded metal fencing framed panels with barbed wire can be used to construct high security enclosure for temporary events and high-security zones.
Materials
Low carbon steel
Finish:
Galvanized steel fencing;
Black powder coated;
Green powder coated;
Other color coating.
Expanded Metal Fence Specifications
Customization is available according to project requirements.
Common Openings: 20x40mm, 30x60mm, 40x80mm, 50x100mm, 75x150mm.
Panel Dimensions (Width x Height)
Width: 0.5m - 2.4m
Height: 1.5m, 1.8m, and 2.0m are common heights for highway fences.
Maximum Size: Up to 2.4m x 3m.
Frame: 20x20mm or 25x25mm square steel tubes.
Classification and use
Expanded metal fence can be classified into light type and heavy type fence.
According to materials, can be classified into:
Galvanized expanded metal fence
Powder-coated expanded metal fence
Expanded steel mesh fences are mainly used in following fields:
Fencing for highways, railways, urban roads;
Fences for parks, residential communities;
Safety fence for airports, sea ports, military bases, power plants, workshops, warehouses;
Stadium fences, testing grounds, and other barrier applications.
Popular styles
Expanded Metal Fence with Barbed Wire - High Security Steel Fence

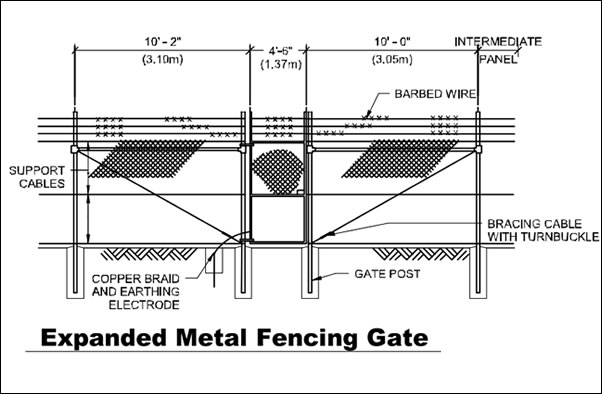

Expanded metal style steel security fence with gates to form a complete fencing system
Expanded metal fence topped with barbed wire to form anti-climbing security fencing
Support cables
Barbed wire coils
Anti Climbing expanded metal gate:
Expanded metal fence panels:

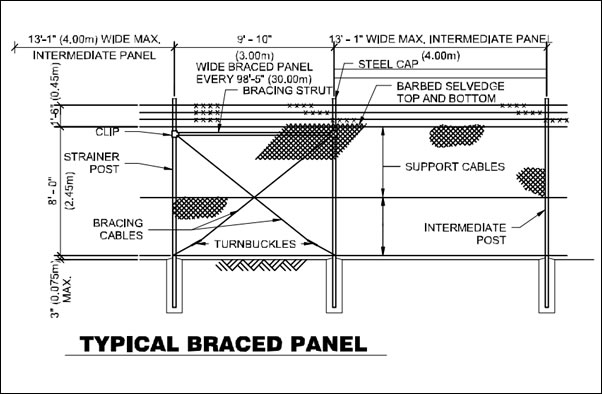

Expanded metal fence with panels, posts and three coils of barbed wire for infrastrucure perimeter:

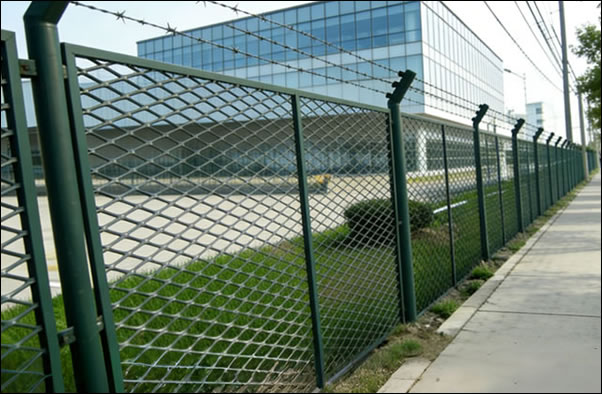

Perimeter security expanded steel fencing panels, diamond hole 1/2" x #13 steel, panel size 5' x 10', standard raised panels galvanized green powder coated finish

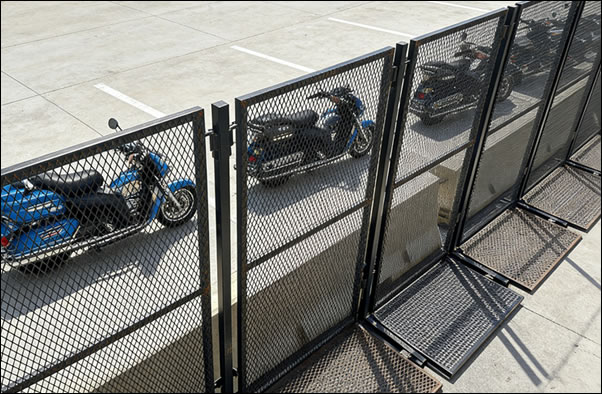

Expanded Steel Fencing Black Coated
Expanded steel temporary fence, framed with steel tubes, galvanized then black polyester coated for corrosion resistance. Diamond mesh: 3/4 inch, 1/2 inch available. Reinforced with middle steel rails and posts.

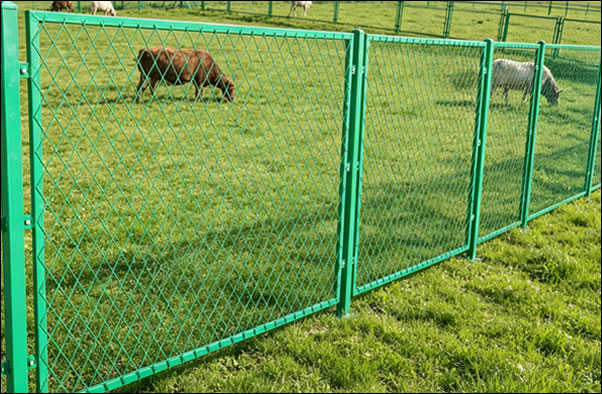

Portable Security Fencing with Expanded Metal Mesh Flattened Sheet
Style: Expanded metal fencing flattened panels (not raised panels) with diamond shaped mesh
Material: Galvanized steel mesh panels
Diamond hole: 3/4" #13
Panel size: 5' x 10'
Height: 2.5 to 3 meters
Mesh: anti-climb expanded metal (cut-resistant)
Finish: Powder-coated in colors: Green, black, etc.
Mobility: Portable steel mesh panels with heavy base plates
Usage: Portable security perimeter

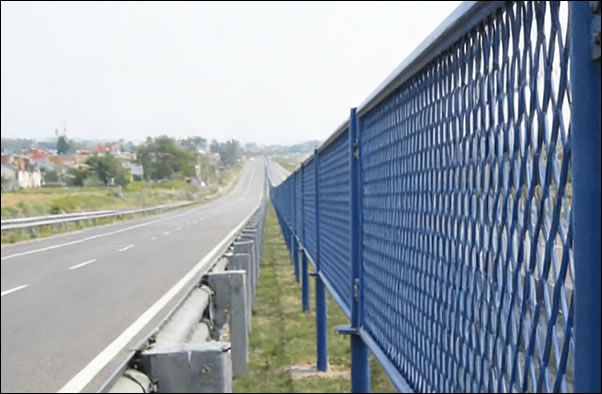

Expanded Metal Fence for Highway
Highway security fencing of flat expanded steel mesh panels, diamond pattern, blue sprayed
