Concertina Wire Bracket / Barbed / Razor Wire Support:
Y-Bracket / Y-Crank Bracket
Y-Bracket Posts
Y-Bracket posts are used for perimeter security fencing construction by supporting of concertina razor wire at fence tops. Y arm brackets extend vertically from existing fence posts to support high-security barbed wire coils.
Benefits: With mounting of barbed and razor wire via Y-Brackets, wire fences becomes high security fences with anti climbing tops.
Finish: Y arms brackets feature hot-dip galvanized or powder-coated finishes to resist corrosion in harsh environments.
Application: Supports high-tensile concertina razor wire on industrial, commercial, and various facility perimeters.
Designs: Available in single-cranked or double-cranked (V arm or Y-shaped) profiles to match specific site security requirements.
Installation: Y bracket posts can be mounted easily with existing steel palisade, wire mesh, or concrete fence structures via bolted or welded connections.
50mm x 75mm x 6mm x 75mm long mild steel angle to BS4848 with 12mm diameter holes for fixing to posts and for topping mounting.
Protective finish to be hot dip galvanised to BS729.
Topping Support Arms
50mm x 50mm x 5mm x 600mm long mild steel angle to BS4848 with 12mm diameter holes for flexible rubber bushed and 6mm vertical slots for barbed razor tape.
Protective finish to be Hot Dip Galvanised to BS729.
Made of 60mm +/-5mm steel pipe 2mm thickness, galvanized and painted.
V angle 45degrees
Length min. 400mm

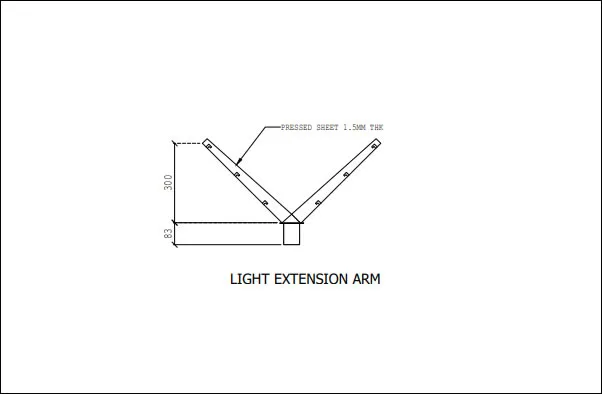

2mm thk light Duty Y arm crank
For intermediate post with Slots for barbed wire
Supplied
with M8 G.I. bolt and nut
Vertical height-0.3m
Inclined length- 0.425m(45-degree inclination)

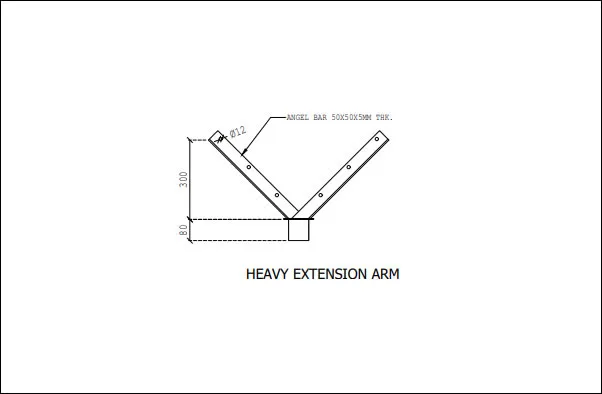

Heavy Duty Y shape Extension Crank
50X50X5mm Thk MS angle- Y arm crank
For pull/corner/end post with holes for EYE bolt
Vertical height 0.3m
Inclined length-0.425m(45-degree inclination)
Post-Mounted Barbed Wire Support Arms
Barbed wire arms Ø2 ½ 45º for three lines barbed wires.
Finish:
Hot dip Galvanized, minimum weight of zinc shall be 490 g/m².
Barbed wire arms Ø4 45º for three lines barbed wires
Finish: Hot Dip Galvanized, minimum weight of zinc shall be 490 g/m².

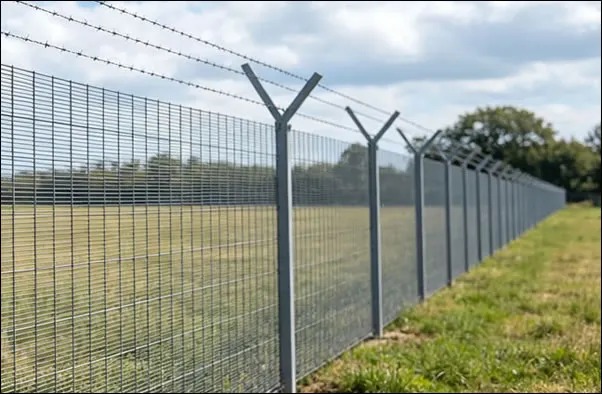

Barbwire V arm Y post for three wire 2 1/2 x 1 5/8, complying to ASTM F626, for 358 High Security Fence System
Barbwire V arm Y post for three wire 3 x 1 5/8, complying to ASTM F626, for 358 High Security Fence System
Used as Line/intermediate post in security fencing system
Galvanized steel green color PVC coated post with Y Crank at top suitable to install 6 rows of barbed wire and 650 mm dia. concertina wire.
Clear Height after installation must be 3 meter include 0.5 m for Y crank.
Total Height before installation include Y crank must be 3.80 meter.
60.3 X 3.6 mm circular hollow section
Each post welded at bottom with galvanized PVC coated Anchor base plate = 3 mm * 200mm * 200mm
Posts most provided with welded caps.
Codes : - Hot dip galvanize to : BS EN 1461. - Steel of the post to: BS 1387. - Welded Bottom Anchore steel plate : paragraph 2.3.6 of BS 1722 part 10 - Circular hollow section for normal mesh : table 2 BS 1722 part 10.
Certificate required: -Coating report (630). -Certificate of Conformity (600).
Galvanized steel green color PVC coated post with Y Crank at top suitable to install 6 rows of barbed wire and 650 mm dia. concertina wire
Clear Height must be 3.80 meter include 0.5 m for Y crank.
60.3 mm X 3.6 mm circular hollow section include the top crank. ( Thickness before PVC coating not after).
Posts must provide with welded caps at the top of V crank
Circular 5 mm plate must be welded at the bottom of the post with same diameter of the post
The posts must be with three holes each of 20 mm at spacing 25cm c/c between the holes
The holes required to pass bolts 16 mm bolts in order to fix the post on the concrete wall
The location of the holes: The first hole is located 315 cm from the top of the V Crank of the post
The last third hole is located 15 cm from the bottom of the post
Codes : - Hot dip galvanize to : BS EN 1461. - Steel of the post to: BS 1387. - Welded Bottom Anchor steel plate : paragraph 2.3.6 of BS 1722 part 10 - Circular hollow section for normal mesh : table 2 BS 1722 part 10.
Certificate required: -Coating report (630). -Certificate of Conformity (600).
Galvanized steel green color PVC coated post with Y Crank at top suitable to install 6 rows of barbed wire and 650 mm dia. concertina wire with Y crank right angle suitable for fixing barbed wire at change direction of the fence
Clear Height must be 3.9 meter include 0.5 m for Y crank. 114.3 mm X 4.5 mm circular hollow section ( Thickness before PVC coating not after)
Circular 5 mm plate must be welded at the bottom of the post with same diameter of the post
The posts must be with three holes each of 24 mm at spacing 25cm c/c between the holes
The holes required to pass bolts 20 mm bolts in order to fix the post on the concrete wall
The location of the holes: the first hole is located 315 cm from the top of the V Crank of the Post
The last third hole is located 25 cm from the bottom of the post
Codes : - Hot dip galvanize to : BS EN 1461. - Steel of the post to: BS 1387. - Welded Bottom Anchor steel plate : paragraph 2.3.6 of BS 1722 part 10 - Circular hollow section for normal mesh : table 2 BS 1722 part 10.
Certificate required: -Coating report (630). -Certificate of Conformity (600).
Galvanized steel green color PVC coated post with Y Crank at top suitable to install 6 rows of barbed wire and 650 mm dia. concertina wire with Y crank right angle suitable for fixing barbed wire at change direction of the fence
Clear Height must be 5.1 meter include 0.5 m for Y crank. 114.3 mm X 4.5 mm circular hollow section ( Thickness before PVC coating not after)
Circular 5 mm plate must be welded at the bottom of the post with same diameter of the post.
Each post shall be provided with five (5) holes of Ø24 mm diameter.
The first hole shall be located at 3.15 m from the top of the Ø114.3 mm post include V crank.
The second, third holes shall be positioned at 3.40 m, 3.65 m, respectively from the top of the post, with a vertical spacing of 0.25 m between each hole.
The fourth, fifth holes shall be located at 4.05 m, 4.65 m, respectively from the top of the post include V Crank, maintaining a vertical spacing of 0.60 m between fourth and fifth bolts.
The Fifth last hole is located 45 cm from the bottom of the post
Codes : - Hot dip galvanize to : BS EN 1461. - Steel of the post to: BS 1387. - Welded Bottom Anchor steel plate : paragraph 2.3.6 of BS 1722 part 10 - Circular hollow section for normal mesh : table 2 BS 1722 part 10.
Certificate required: -Coating report (630). -Certificate of Conformity (600).
