Galvanized Steel Fencing with Wire Mesh Infill System is designed for industrial, agricultural and high-security perimeter applications with maximum durability and visibility. Produced in modular panels, this infilled wire mesh fence system makes ideal choice for industrial sites, public infrastructure and commercial security.
Structure:
Heavy-duty steel framework of galvanized steel piping + reinforced galvanized wire mesh infill, to form a robust physical barrier with long-term structural integrity.
Corrosion resistance finish:
Galvanized Fencing with Wire Mesh Infill System is hot-dipped galvanized, providing superior resistance to oxidation and environmental wear.
Galvanized Fencing
Galvanized fencing materials, details:
Galvanized fence construction:

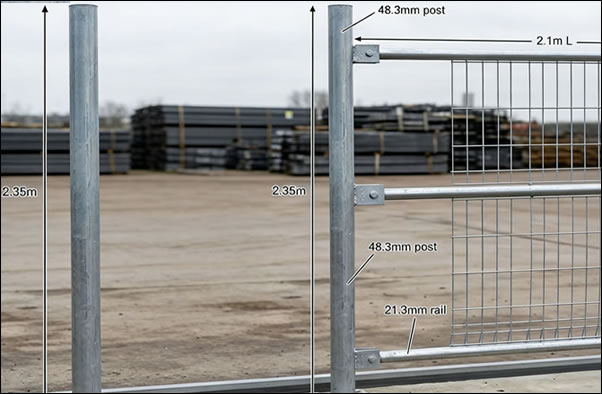

Galvanized steel pipe post for framework:
Posts: Heavy-duty galvanized steel pipes 48.3 mm diameter × 2.35 m H
Horizontal Rails/Bracing: Galvanized steel pipes 21.3 mm dia × 2.1 m L
Intermediate Vertical Stays: Galvanized steel pipes 21.3 mm dia × 1.9 m H
Hardware & Connectors: 100 × 40 × 3 mm connection plates

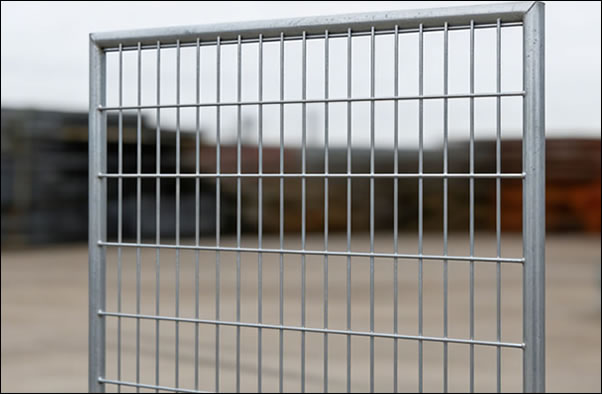

Modular Infill Mesh: Galvanized steel wire mesh 120 × 200 (5 mm diameter)
High-tensile galvanized steel wire mesh, 5 mm wire diameter, 120 mm × 200 mm rectangular aperture, heavy zinc galv.
Fixing Materials:
Fixing Bolts & Nuts: M10/M12 galvanized steel carriage bolts
Tension Wire/Clips: 4 mm galvanized tension wire
Post Caps
Heavy-Duty Security Perimeter Mesh

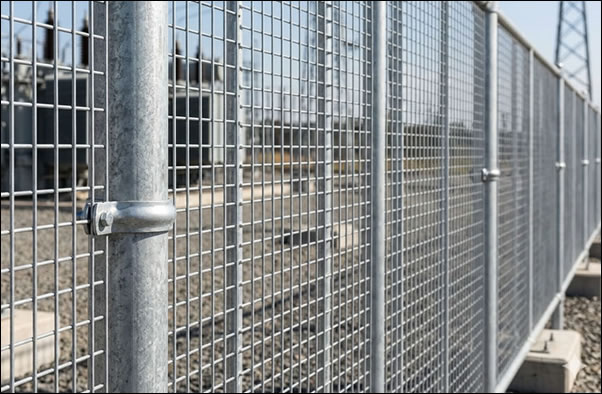

Industrial Perimeter Steel Mesh Fencing, 60.3 mm posts and 50 x 150 mm aperture infill mesh, HDG zinc coating, installed for warehouse and logistics hubs
Construction:
Pipe Post Framework: 60.3mm O.D.x 2.5m H Galvanized Steel Post
Horizontal Rails: 33.7mm O.D.x 2.2 m L Steel Pipe (Top & Bottom)
Mesh Infill: 50x 150 mm Galvanized Steel Mesh 6 mm wire dia
Hardware: 120x 50 x 4 mm Steel Lug Plates with Anti-Tamper Bolts
Commercial Grade Security Wire Mesh Infill Steel Fencing
Boundary steel fencing for public spaces and facilities
Construction:
Fencing pipe post for frame: 48.3mm x 2.1m H Galvanized steel post
Horizontal rails: 26.7mm x 2.0m L Steel Pipe (Mid rail reinforced)
Mesh Infill: 100 x 200 mm Welded Wire Mesh x 5mm wire diameter
Hardware: 100x40x3mm Galvanized connection flanges

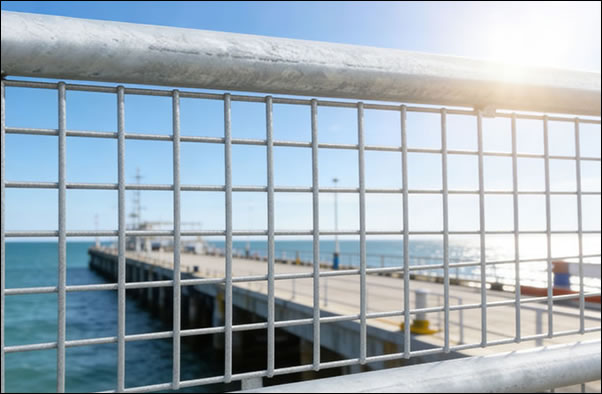

Reinforced High-Visibility Galvanized Steel Boundary Fencing with Infill Wire Mesh Panels
Security fencing panels of pipe framework with galvanised mesh infill, supplied for infrastructure protection
Construction:
Fencing pipe post for frame: 48.3mm x 2.4m H Galvanized steel post
Vertical bracings: 21.3mm x 1.8m H Internal Pipe
Mesh Infill: 75 x 75 mm Galvanized Steel Square Mesh x 4.5mm wire diameter
